Trailer Specifications:
GVWR: | 14000 lbs, | Empty Weight: | 4170 lbs. |
Payload: | 9830 lbs. | Dimensions: | 83"x14' |
Axle: | 2 - 7K EZ Lube Axles w/ Brakes & Breakaway | Battery: | Deep Cycle 24 |
Battery Charger: | 110 V AC 1.5 AMP | Bed Control: | Corded Remote |
Coupler: | 2-5-16" 14K Adj. | D-Rings: | 4 Equipment D-Rings Inside |
Fenders: | 9"x72" 14 Ga. Diamond Plated Teardrop | Floor: | 10 Ga. Floor & Wall |
Front: | 44" Height 10 Ga. Plate | Bottom Frame: | 6" Structural Channel |
Top Frame: | 5x2 Rectangular Tube | Hoist Capacity: | Top Quality Scissor Hoist 45 Degree Dump Angle |
Jack: | 12K Dropleg Spring Assist | Lights: | LED Lights Grommet Mounted Sealed Beam in Box |
Paint: | 2 Coats Single Stage | Plug & Wiring: | 7 Way Round, Modular, Rubber Sealed, Harness |
Ramps: | 6' 3" Channel Slide in Ramps | Sides: | 44" Side Height 10 Ga. Plate |
Stake Pockets: | 10 Total - 4 Per Side & 2 in Front | Suspension: | 5 Leaf Slipper Springs |
Tail Gate: | Combo Gate (Spreader/Double Doors/Removable) | Tarp Kit: | Included with Tarp Hooks on Side & Rear |
Tires: | ST 235/80R16 LR(E) Radial | Tongue: | 5" Channel |
Wheels: | 16" 8 Lug Black Mod | Add-Ons Included: | Spare Mount & Spare Tire |
GVWR: | 14000 lbs, |
Empty Weight: | 4170 lbs. |
Payload: | 9830 lbs. |
Dimensions: | 83"x14' |
Axle: | 2 - 7K EZ Lube Axles w/ Brakes & Breakaway |

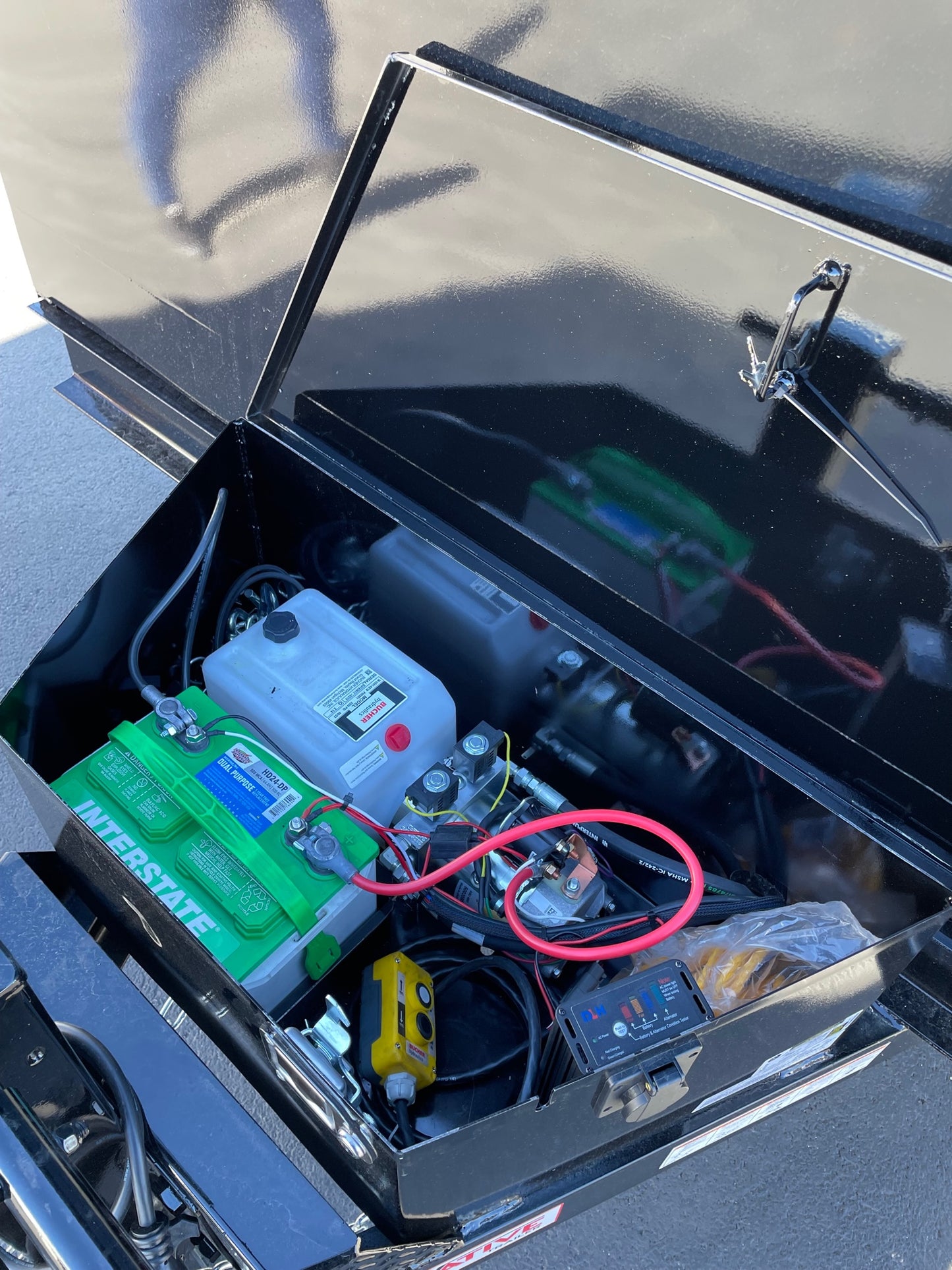

Battery: | Deep Cycle 24 |
Battery Charger: | 110 V AC 1.5 AMP |
Bed Control: | Corded Remote |
Coupler: | 2-5-16" 14K Adj. |
D-Rings: | 4 Equipment D-Rings Inside |
Fenders: | 9"x72" 14 Ga. Diamond Plated Teardrop |
Floor: | 10 Ga. Floor & Wall |
Front: | 44" Height 10 Ga. Plate |
Bottom Frame: | 6" Structural Channel |
Top Frame: | 5x2 Rectangular Tube |

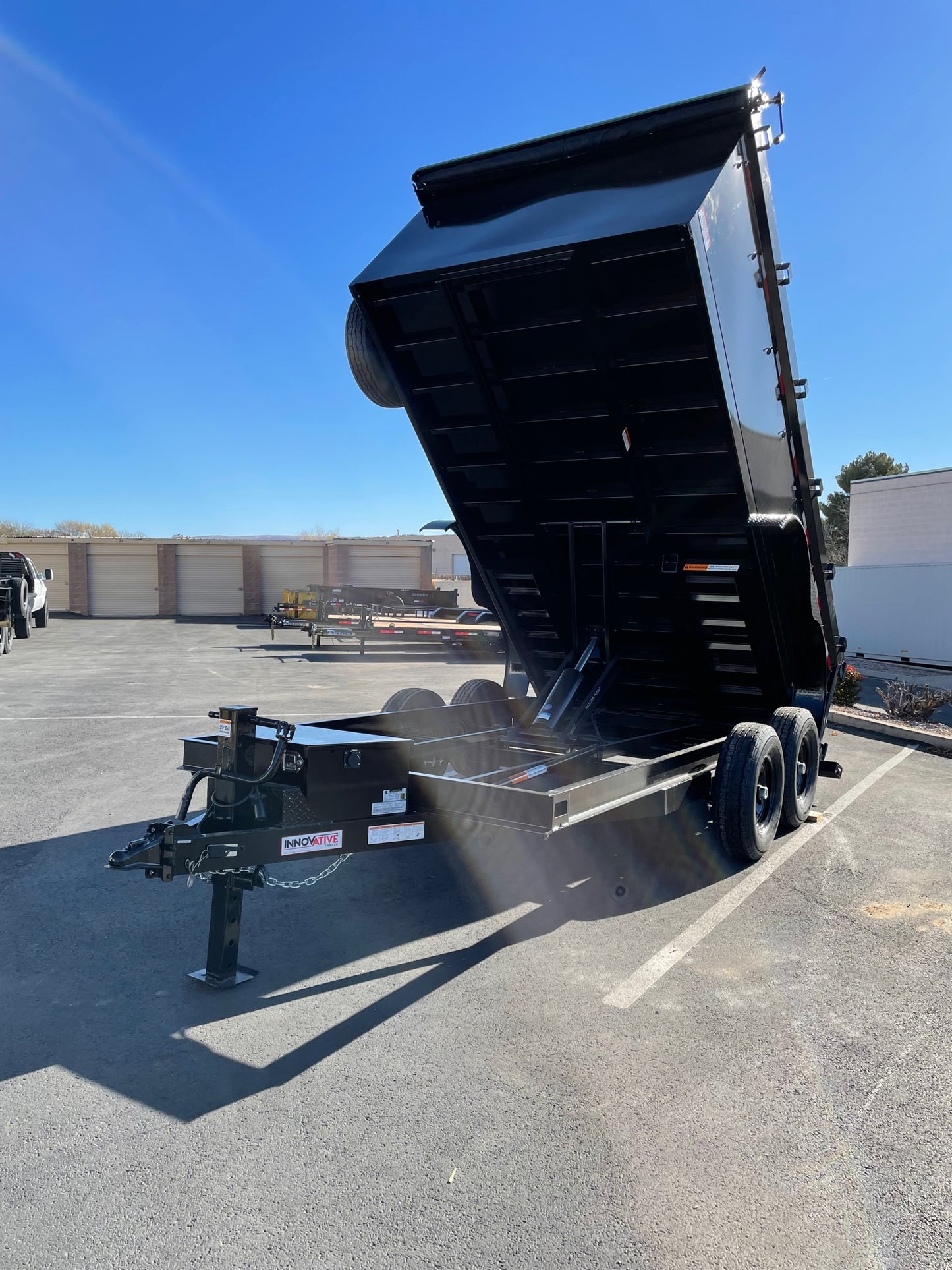

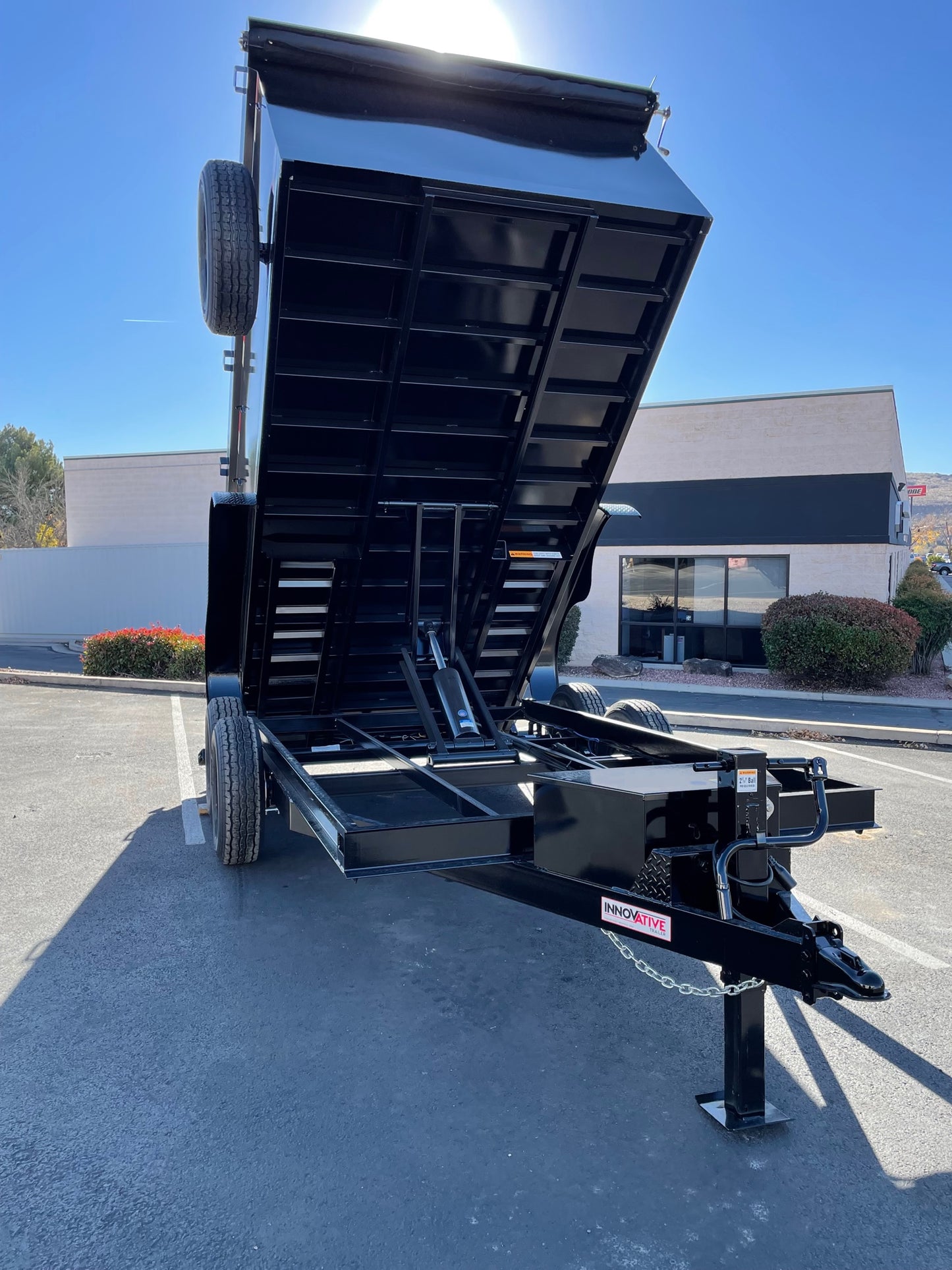

Hoist Capacity: | Top Quality Scissor Hoist 45 Degree Dump Angle |
Jack: | 12K Dropleg Spring Assist |
Lights: | LED Lights Grommet Mounted Sealed Beam in Box |
Paint: | 2 Coats Single Stage |
Plug & Wiring: | 7 Way Round, Modular, Rubber Sealed, Harness |
Ramps: | 6' 3" Channel Slide in Ramps |
Sides: | 44" Side Height 10 Ga. Plate |
Stake Pockets: | 10 Total - 4 Per Side & 2 in Front |
Suspension: | 5 Leaf Slipper Springs |
Tail Gate: | Combo Gate (Spreader/Double Doors/Removable) |
Tarp Kit: | Included with Tarp Hooks on Side & Rear |
Tires: | ST 235/80R16 LR(E) Radial |
Tongue: | 5" Channel |
Wheels: | 16" 8 Lug Black Mod |
Add-Ons Included: | Spare Mount & Spare Tire |
