Trailer Specifications:
GVWR: | 21,000 lbs. | Empty Weight: | 6150 lbs. |
Payload: | 14850 lbs. | Axles: | 2 10K Brake Oil Bath Hubs |
Breakaway: | Standard with Brake | Chain Tray: | Standard with Neck |
Coupler: | 2 5/16" 24K Set Screw Leveling | Box: | 24" Underslung |
Crossmembers: | 24" Centers | Deck: | 20' Straight Deck + 5' Dove Tail w/ 2 Spring Assist Flip |
Floor: | 2" Douglas Fir | Jack: | 2 12K Dropleg w/ Spring Assist |
Lights: | LED Grommet Mounted - Sealed Beam | Paint: | (2) Coats Single Stage |
Frame: | 12" I-Beam with Bridge (Chug Control) | Bed Rails: | 6" Channel |
Plug & Wiring: | 7 Way Round, Modular, Rubber Sealed, Harness | Neck: | 12" Channel w/ Spare Mount & Tire |
Headache Rack: | 12 GA. Custom w/ Handles | RubRail: | 3/8"x2" Bar |
Tires: | ST235/80R16 LR(E) Dual | Wheels: | 16" 8-6.5" Dual |
Suspension: | 2.5" Wide Slipper | Add Ons Inlcuded: | Spare Mount & Tire |
GVWR: | 21,000 lbs. |
Empty Weight: | 6150 lbs. |
Payload: | 14850 lbs. |
Axles: | 2 10K Brake Oil Bath Hubs |
Breakaway: | Standard with Brake |
Chain Tray: | Standard with Neck |
Coupler: | 2 5/16" 24K Set Screw Leveling |

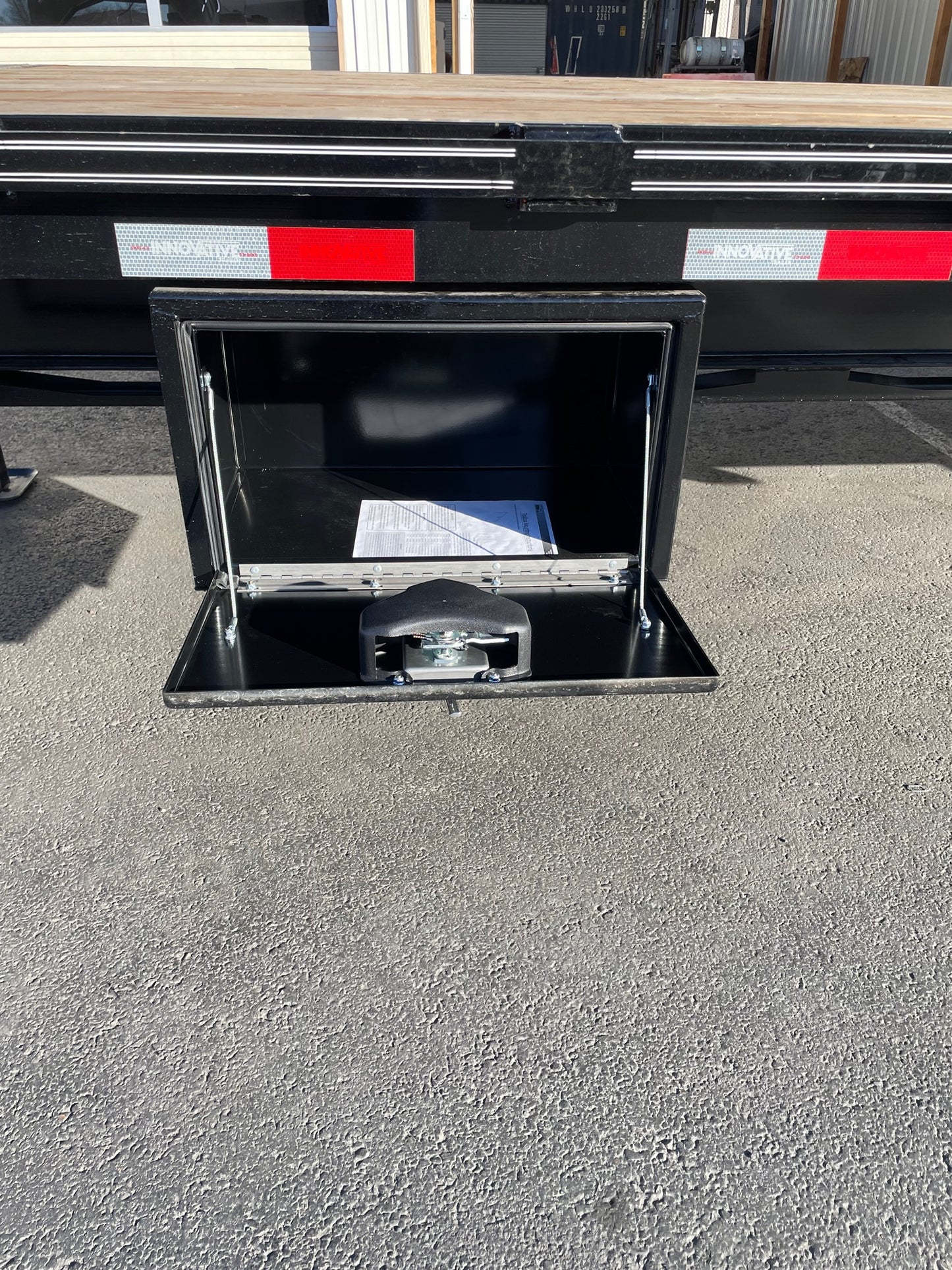

Box: | 24" Underslung |
Crossmembers: | 24" Centers |

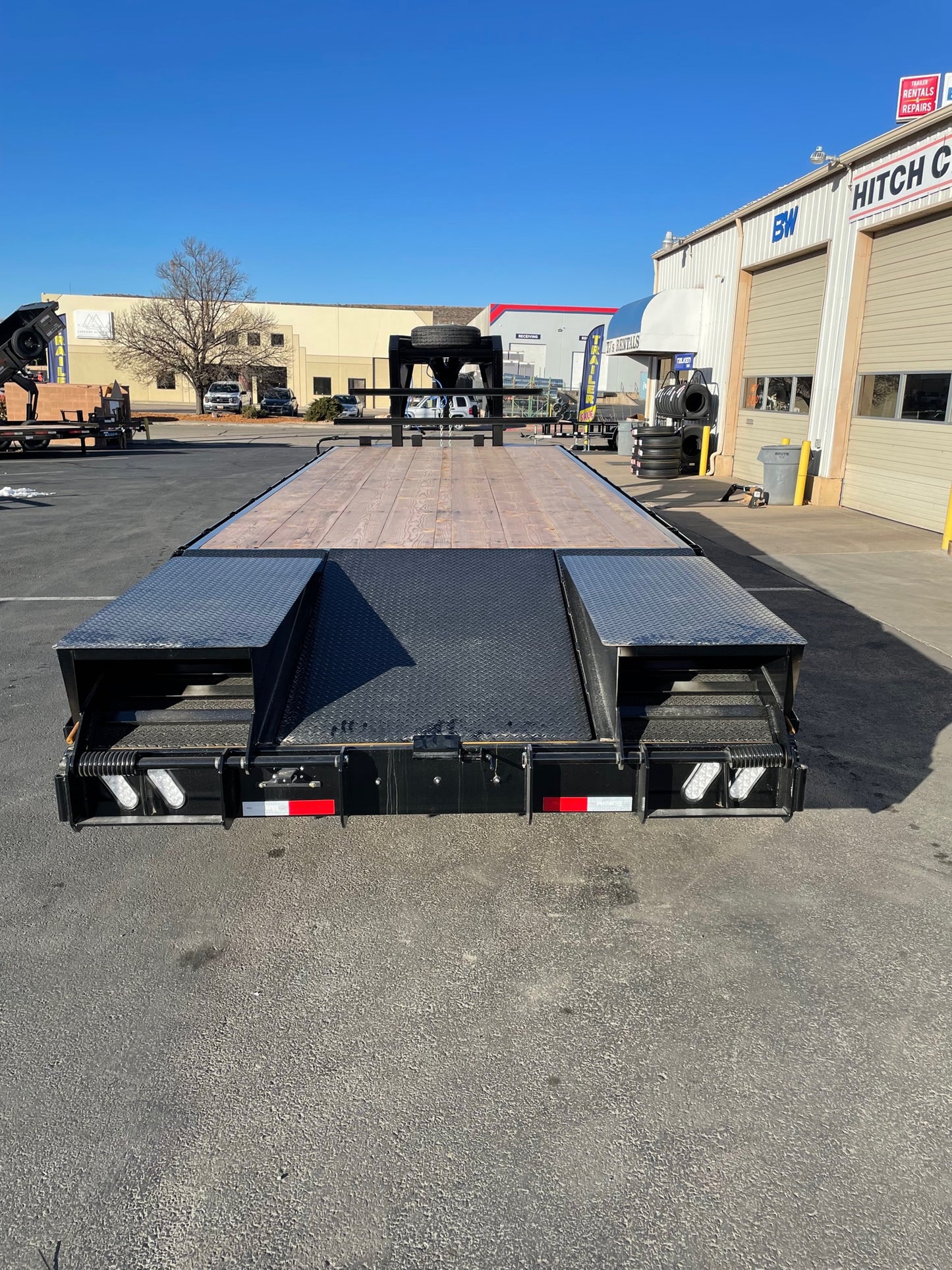

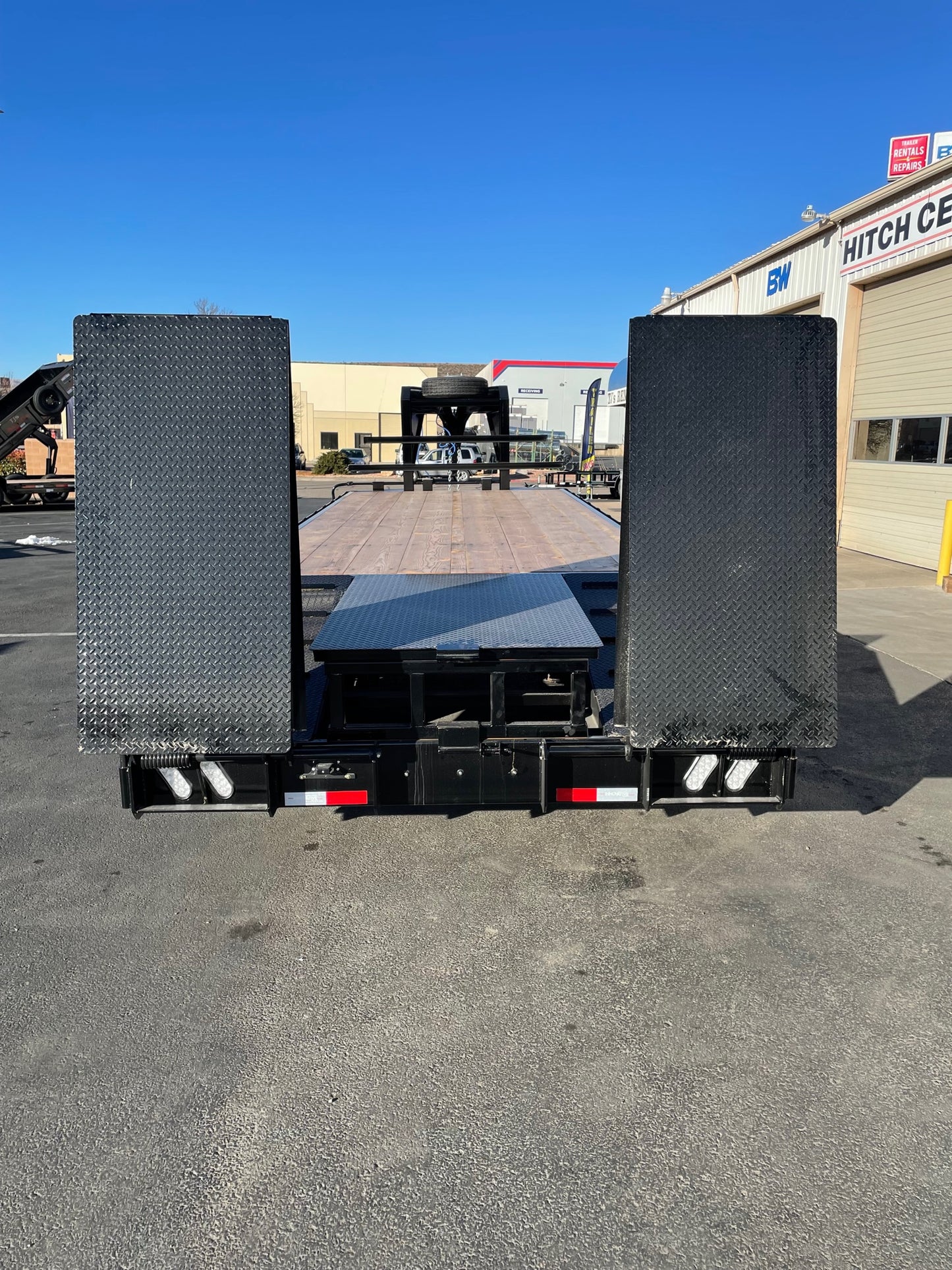

Deck: | 20' Straight Deck + 5' Dove Tail w/ 2 Spring Assist Flip |
Floor: | 2" Douglas Fir |
Jack: | 2 12K Dropleg w/ Spring Assist |
Lights: | LED Grommet Mounted - Sealed Beam |
Paint: | (2) Coats Single Stage |
Frame: | 12" I-Beam with Bridge (Chug Control) |
Bed Rails: | 6" Channel |
Plug & Wiring: | 7 Way Round, Modular, Rubber Sealed, Harness |

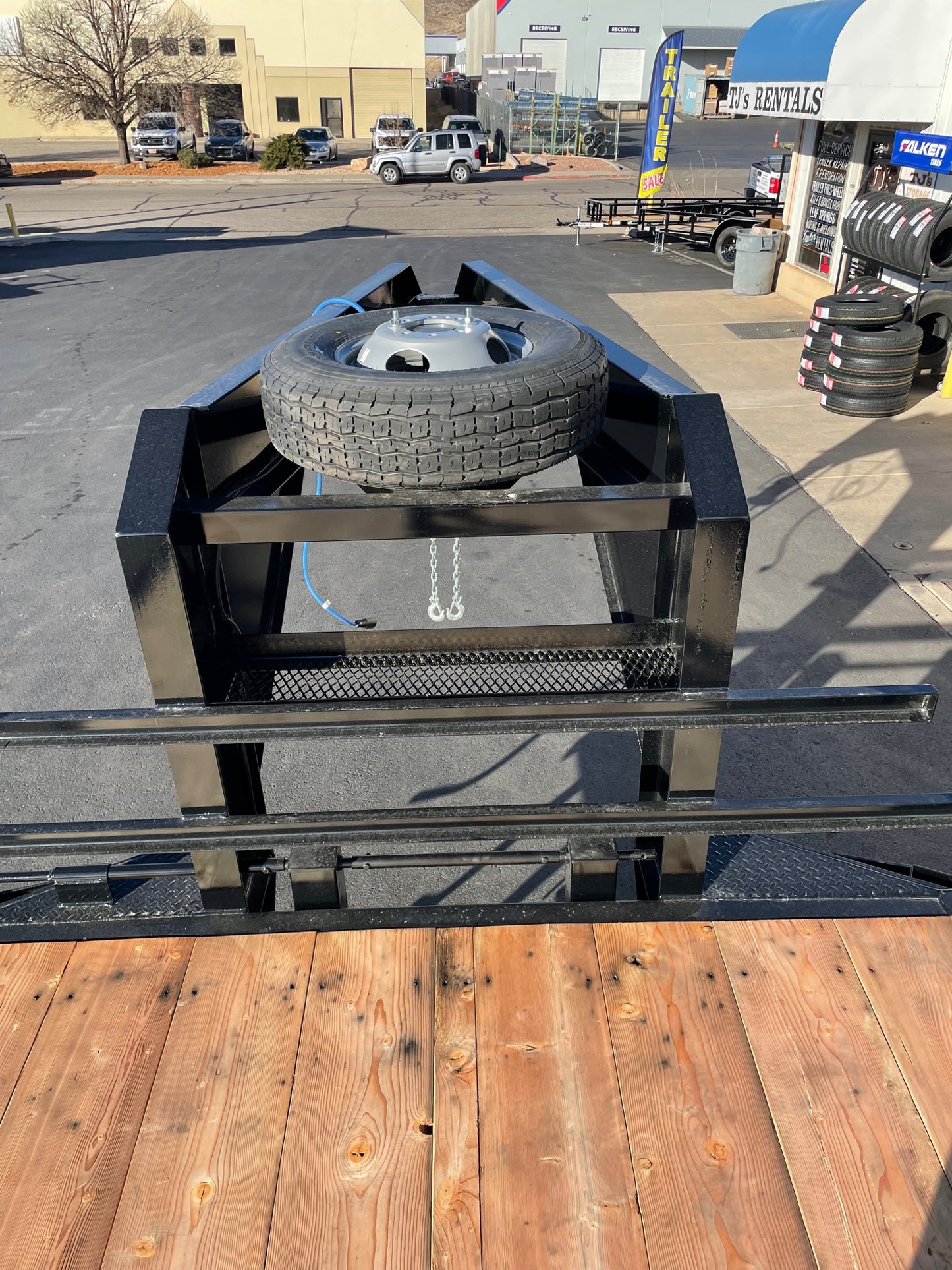

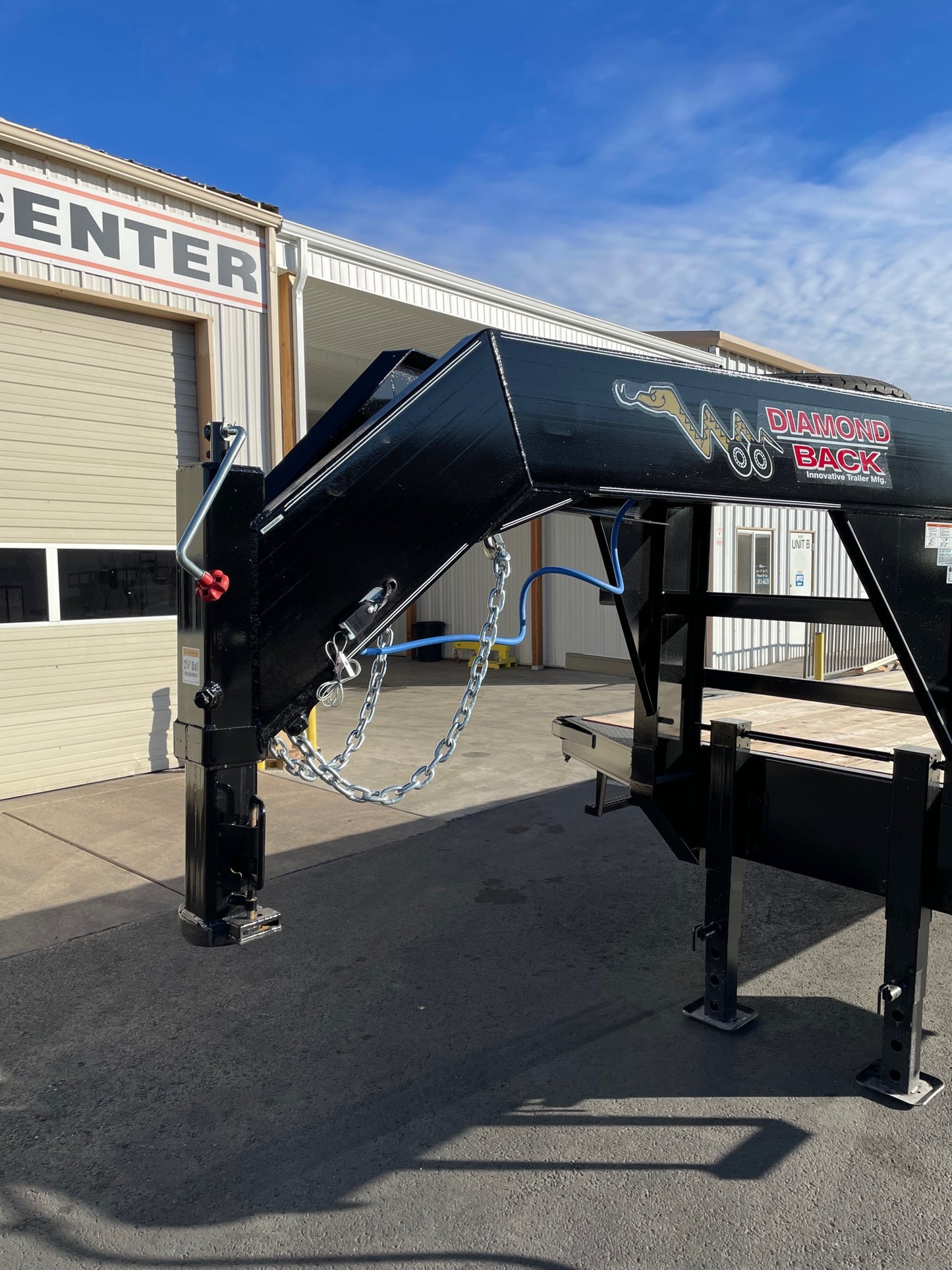

Neck: | 12" Channel w/ Spare Mount & Tire |
Headache Rack: | 12 GA. Custom w/ Handles |
RubRail: | 3/8"x2" Bar |

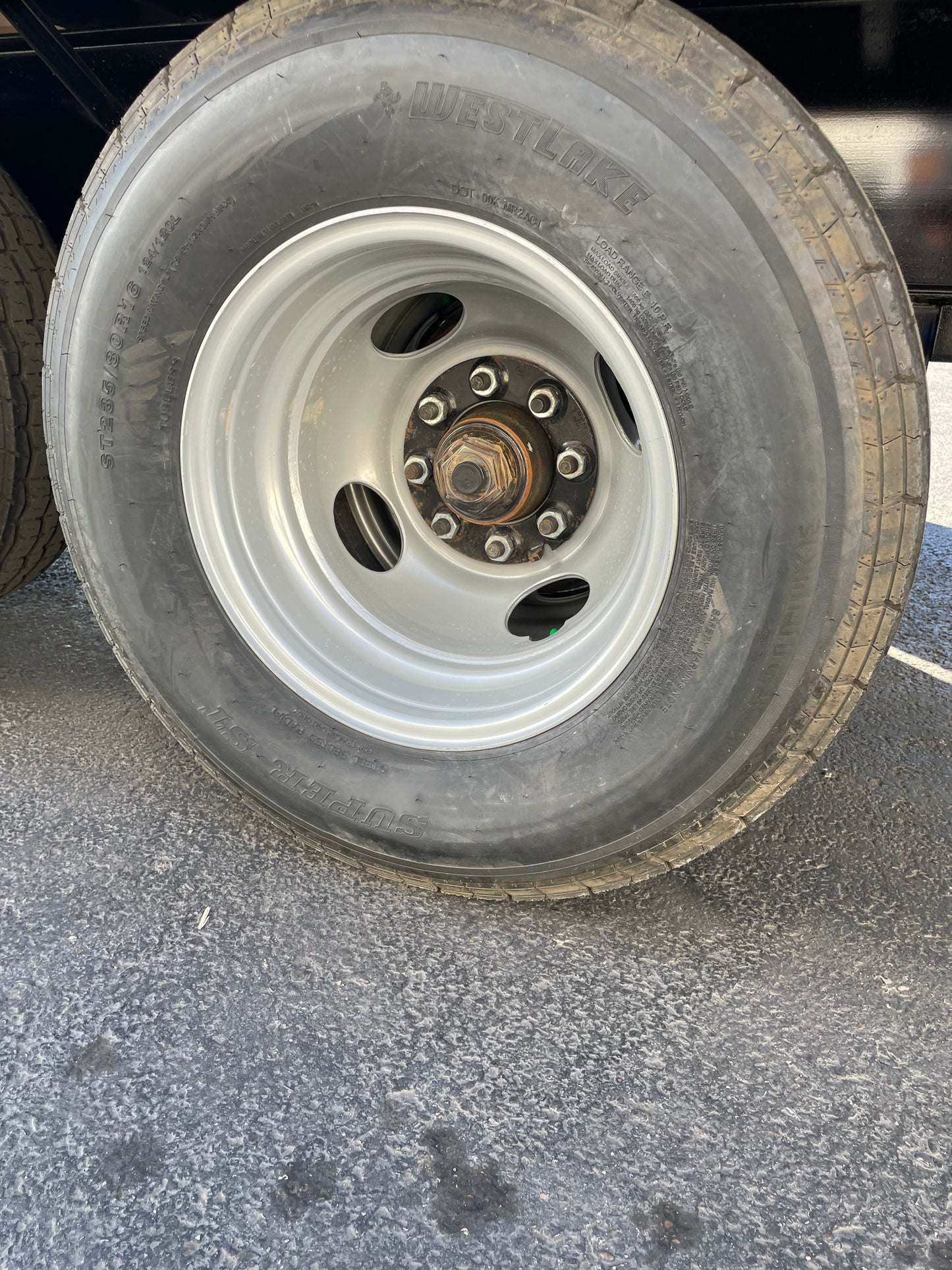

Tires: | ST235/80R16 LR(E) Dual |
Wheels: | 16" 8-6.5" Dual |
Suspension: | 2.5" Wide Slipper |
Add Ons Included: | Spare Mount & Tire |
